ZYS(RAS) 系列闸式剪板机1

ZYS(RAS) 系列闸式剪板机1

起订量 ≥ 1 价格面议
物流
安徽省马鞍山市
成交/评价
数量
(库存)

企业资质

  • 产品详情
  • 成交0
  • 评价0

品牌 型号

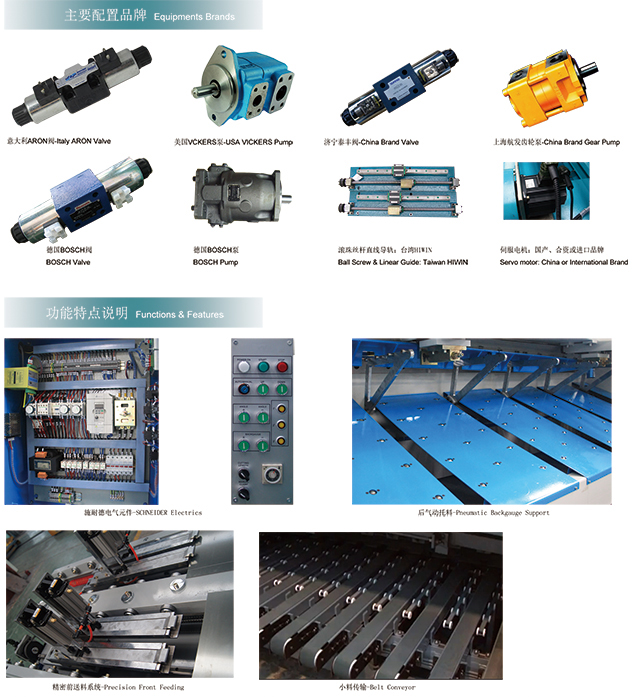

数显、单轴数控闸式剪板机标配项说明 Standard Equipments For Digital & Single Axes Guillotine

  液压阀:意大利ARON(6-12mm机型标配)济宁泰丰(13mm以上机型标配)
Hydraulics: Italy ARON for 6-12mm modelsChina TAIFENG for up 13mm models
泵:美国VICKERS(6-12mm标配)上海航发齿轮泵(13mm以上机型标配)
Pump: USA VICKERS(6-12mm models)China HANGFA Gear Pump for up 13mm models
电气:法国SCHNEIDER
Electrics: SCHNEIDER / TELEMECANIQUE

  密封圈:德国FIETZ、台湾DZ、日本NOK
O-rings: German FIETZ,Taiwan DZ,Japan NOK
刀片间隙手动调整
Blades gap manual adjustable
数显系统:意大利MPF
Digital: Italy MPF
数控系统:国产E21S、E200S、意大利HT071、德国ELGO P40
Single Axes Controller: China E21S/E200S Italy HT071,German ELGO P40



多轴数控闸式剪板机标配项说明 Standard Equipments For Multi-Axes CNC Guillotine

  液压阀:意大利ARON(6-12mm机型标配)
        济宁泰丰(13mm以上机型标配)
Hydraulics: Italy ARON for 6-12mm modelsChina TAIFENG for up 13mm models
泵:美国VICKERS(6-12mm标配)上海航发齿轮泵(13mm以上机型标配)
Pump: USA VICKERS(6-12mm models)China HANGFA Gear Pump for up 13mm models
滚珠丝杆、直线导轨:台湾HIWIN
Ball screw & linear guide: Taiwan HIWIN
电气:法国SCHNEIDER
Electrics: SCHNEIDER / TELEMECANIQUE
密封圈:德国FIETZ、台湾DZ、日本NOK
O-rings: German FIETZ,Taiwan DZ,Japan NOK
刀片间隙电动调整
Blades gap adjustable by motorized
伺服电机:国产、合资、进口品牌
Servo motor: Chinese/Joint-venture/Imported Brand
数控系统:荷兰DELEM DAC310、DAC360
CNC controller: Holland DELEM DAC310/DAC360


◆选配项说明 Optional

  德国BOSCH阀、BOSCH泵-German BOSCH valve/pump
后气动托料机构-Backgauge Pneumatic Support
精密前送料机构-Front Feeding
切料传输落料机构-Belt Conveyor and collection mechanism
激光对线装置-Laser alignment device
机身后部光电保护装置-Back light guards


成交0

产品与描述相符5共0次评分



可选的数控系统

100T/3200 DA52S 出口供货/Export

◆DA52S特点

  一页式参数编程,6.4” LCD真彩 TFT显示,工作台挠度补偿控制,模具库
后挡料第二轴控制可选,USB接口,先进的Y轴控制算法,
既可控制闭环,也可控制开环阀
后挡料可选择伺服控制、变频控制、AC交流控制,面板式结构

  Quick, one page programming. Hotkey navigation. 7” VGA colour TFT
Up to 4 axes (Y1, Y2, and 2 auxiliary axes). Crowning control
Tool/material/product library. USB, peripheral interfacing
Advanced Y-axis control algorithms for closed loop  as well as open loop valves



200T/4000 DA56S 国内标准机型不带护网

◆DA56S特点

  二维编程,10.4“LCD TFT 彩显,折弯工序确定
展开长度计算,工作台变形补偿,USB接口
面板安装方式,伺服控制,变频控制和A C交流电机控制

  2D graphical programming,10,4" LCD TFT colour display
Bend sequence determination, Developed length calculation
Crowning control, USB peripheral interfacing
Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.



160T/3200 DA66T CE标准出口机型

◆DA66T特点

  2D触摸式图形编程, 3D产品图形模拟显示
17”高分辨率TFT真彩显示, 完整的Windows应用程序包
兼容DELEM模块化结构, USB,外设接口
多任务环境下用户程序应用, 角度检测传感器接口

  2D graphical touch screen programming mode,3D visualisation in simulation and production
17" high resolution colour TFT, Full Windows application suite
Delem Modusys compatibility (module scalability and adaptivity) USB, peripheral interfacing
User specific application support within the controllers multitasking environment
Sensor bending & correction interface



200T/3200 DA69T 国内标准机型(不含护网)

◆DA69T特点

  2D和3D触摸式图形编程,3D产品图形模拟显示
17”高分辨率TFT真彩显示,完整的Windows应用程序包
兼容DELEM模块化结构,USB,外设接口
多任务环境下用户程序应用,角度检测传感器接口

  3D and 2D graphical touch screen programming mode,3D visualisation in simulation and production
17" high resolution colour TFT, Full Windows application suite
Delem Modusys compatibility (module scalability and adaptivity) USB, peripheral interfacing
User specific application support within the controllers multitasking environment
Sensor bending & correction interface



400T/4000 ESA S540 国内供货机型

◆ESA S540特点

  液晶彩显10.2" TFT SVGA抗辐射,交互式2D图形编辑和模具输入
3D显示工件、模具和机床框架;手动2D图形用于设置最佳的折弯步序
类似WINDOWS的操作方式,以制表方编程轴的位置,操作简单,自动检查,
计算R轴和X轴以及折弯吨位,预设标准PC键盘(选配)
用户自定义报警功能

  10.2" TFT VGA colour display with antiglare screen, ergonomic moulded plastic housing, with a panel suitable for machine operational selector-switches and push-buttons;
Following arms, thickness detector, in-process angle measurement units, robotic interfacing, controlling for tandem press-brakes
Interactive 3D graphic editor for work-pieces and tools data entry
Manual 2D graphic identification of the best bending sequence
Programming of the axes positions in tabular mode with automatic syntactical checks, automatic calculation of the R and Z positions and of the bending and crowning tonnage
Windows® like user interface and Multi-languages


63T/2500 ESA S530

◆ESA S530特点

  单色5.7''LCD显示器(320*240像素)
实时自动检查的填表式编程模式,自动计算折弯以及补偿力
所有的程序、模具、参数可以保持在本机内存或U盘
提供控制轴及其他辅助功能的编程功能
控制三个轴

  Graphic monochrome 5.7''LCD display(320*240 pixels resolution)
Programming of the axes positions in tabular mode with automatic syntactical checks, automatic calculation of the bending and crowning tonnage.
All programs, tools description, parameters can be stored on the internal memory or on USB memory stick. These files can be exchanged with other CNC and PC through
USB memory stick.
Selectable and programmable axes and auxiliary functions.
Control 3 axes.


125T3200 DNC880S 出口供货

◆DNC880S特点

  高品质大键盘操作面板,可以戴手套操作,高亮度、分辨率10.4” TFT 真彩液晶显示
中文操作界面,标准4轴或7轴控制,800MHZ中央处理器
1GB工业级闪存主存储器、内存容量256MB,产品模具信息存储容量300MB
以太网RJ45网络接口, USB接口4个(3个外置,1个内置)
标准VGA视频输出/键盘/鼠标/打印机/RS232接口
快捷主题键,弹出式菜单,下拉式产品图形库、模具库,集成式机床操作面板,不锈钢手柄

  Keyboard: Large keys easy to use with working gloves10.4” TFT colour LCD screen
Language: 17 dialogue languages
Axes: 4 axes standard configuration, or up to 7 axes
CPU: Via Eden 400MHz, RAM: 256MB (standard version)
Mass memory: Compact Flash (1 GB), Port: USB, RS232, RJ45 Ethernet, VGA
Product and Tool memory 300MB, Integrated OEM Panel


◆数控系统品牌说明 CNC Controller

  荷兰DELEM品牌系列:DA52S、DA56S、DA66T、DA69T
意大利ESA品牌系列:ESA S530、ESA S540、S550
瑞士CYBELEC品牌系列:DNC60S、DNC600S、DNC880S、MODEVA10S、MODEVA12S
