QC12K系列数控摆式剪板机_剪板机

产品详情
成交0
评价0

品牌型号

◆DAC310特点：
　　275X48高亮液晶显示屏，像素运用伺服控制技术；
电动后挡料自动定位，自动退让；
多道程序自动运行，程序和程序步链接；
剪切计数，剪程限定，断电记忆，公/英制转换；
Bright LCD 128 x 64 display;
Backgauge control, Gap control, Stroke length limitation;
Actual and Programmed position visualization, Stock counter;
Programmable up to 100 steps;
Panel-based housing;
Servo control / unipolar / AC two- speed control;mm/inch transmission;

◆E200S特点：

　　后挡料控制，总线方式控制伺服系统；
剪程控制，双路可编程数字输出；
40个程序存储，每个程序25步；
单这定位，退让功能，公英制，中英文；
240X128 像素LCD显示

　　Backgauge control, bus mode control servo system;
Stroke length limitation, double programmable digital output;
Program memory of up to 40 programs, up to 25 steps per program;
One side positioning, retract frunction; mm/inch transmission, Chinese / English transmission; 240X128 pixels LCD display;

◆E21S特点：

　　后挡料控制，控制普通电机或变频器；
智能定位，双路可编程数字输出；
工件计数，40个程序存储，每个程序25个工步；
单边定位，退让功能；
参数一键备份与恢复；
公英制转换，中英文；
LCD显示屏；

　　Backgauge control, control for general AC motor, frequency inverter;
Interlligent positioning, double programmable digital output;
Stock counter, program memory of up to 40 programs, up to 25 steps per program;
One side positioning, retract function;
One key backup, restore of parameters;mm/inch trasmission, Chinese/English trasmission;
LCD display;

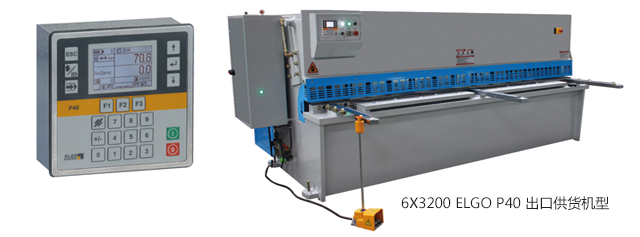

◆P40特点：

　　模拟输出端或一至三速数字变速输出端
16 个可编程的数字输入/输出端
至1000 个程序句的程序存储器
挡料、剪切角和刀口间隙控制
剪程限定，剪切角和刀口间隙材料表
Analog or digital outputs for 1 - 3 speed operation
16 free programmable digital in-/outputs
Program memory (1000 sets)
Angle control / gap control / backgauge
Limitation of the cutting length
Material List for angle and gap control

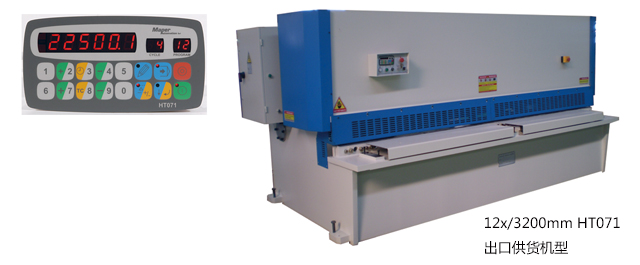

◆HT071特点：

　　带互锁触点的继电器输出，最大负荷120 Vac 1A
光绝缘体输入
6 个高亮度发光二极管数字和符号显示用于标示位置，
2 个数字显示用于显示周期和程序。
可以存储99 个程序，每个程序有20 个周期组成。
每个周期最大可计数至65000 次循环。
数据和程序储存在闪存中，无需浮动蓄电池
IP65，聚碳酸酯，防水，耐磨损，有敏感触觉的键盘

　　Regulated power supply for encoder or push pull / o.c. optical line 12 Vdc ± 5% 120 mA
Optoisolated inputs
High luminosity led display having 6 digits plus sign for position,
2 digits for cycles and for programs.
Possibility to save up to 99 programs composed of 20 cycles.
Each cycle can count 65000 repetitions at maximum
Data and programs are saved in a flash memory without floating battery
IP65, polycarbonate, water and abrasion-proof keyboard with tactile sensitivity

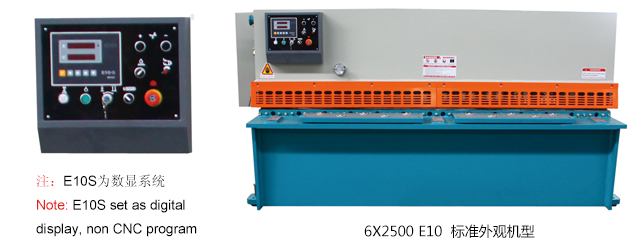

◆E10S特点：

　　后挡料位置显示；
分辨率0.1mm或0.01mm；
剪切次数，内置两个时间继电器；
单边定位指示，软限位功能；

　　X axis and Y axis position display;
Resolution:0.1mm or 0.001 inch;
Stock counter, 2 timer integrated;
One side positioning indication;
Sofware limitation;
Power-off memorization;

　　注：E10S为数显系统（Note: E10S set as digital display, non CNC program）

◆数显/数控系统品牌说明 Digital/CNC Controller

　　国产品牌系列(Chinese Brand)：南京埃斯顿（ESTUN)E10S、E21S、E200S、E210S
国外品牌：荷兰 Holland DELEM DAC310、德国 German ELGO P40、意大利 Italy HT071

成交0笔

产品与描述相符5分共0次评分{$review_pages}

产品列表

可选的数控系统

100T/3200 DA52S 出口供货/Export

◆DA52S特点

　　一页式参数编程，6.4” LCD真彩 TFT显示，工作台挠度补偿控制，模具库
后挡料第二轴控制可选，USB接口，先进的Y轴控制算法，
既可控制闭环，也可控制开环阀
后挡料可选择伺服控制、变频控制、AC交流控制，面板式结构

　　Quick, one page programming. Hotkey navigation. 7” VGA colour TFT
Up to 4 axes (Y1, Y2, and 2 auxiliary axes). Crowning control
Tool/material/product library. USB, peripheral interfacing
Advanced Y-axis control algorithms for closed loop as well as open loop valves

200T/4000 DA56S 国内标准机型不带护网

◆DA56S特点

　　二维编程，10．4“LCD TFT 彩显，折弯工序确定
展开长度计算，工作台变形补偿，USB接口
面板安装方式，伺服控制，变频控制和A C交流电机控制

　　2D graphical programming,10,4" LCD TFT colour display
Bend sequence determination, Developed length calculation
Crowning control, USB peripheral interfacing
Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.

160T/3200 DA66T CE标准出口机型

◆DA66T特点

　　2D触摸式图形编程, 3D产品图形模拟显示
17”高分辨率TFT真彩显示, 完整的Windows应用程序包
兼容DELEM模块化结构, USB，外设接口
多任务环境下用户程序应用, 角度检测传感器接口

　　2D graphical touch screen programming mode,3D visualisation in simulation and production
17" high resolution colour TFT, Full Windows application suite
Delem Modusys compatibility (module scalability and adaptivity) USB, peripheral interfacing
User specific application support within the controllers multitasking environment
Sensor bending & correction interface

200T/3200 DA69T 国内标准机型（不含护网）

◆DA69T特点

　　2D和3D触摸式图形编程，3D产品图形模拟显示
17”高分辨率TFT真彩显示，完整的Windows应用程序包
兼容DELEM模块化结构，USB，外设接口
多任务环境下用户程序应用，角度检测传感器接口

　　3D and 2D graphical touch screen programming mode,3D visualisation in simulation and production
17" high resolution colour TFT, Full Windows application suite
Delem Modusys compatibility (module scalability and adaptivity) USB, peripheral interfacing
User specific application support within the controllers multitasking environment
Sensor bending & correction interface

400T/4000 ESA S540 国内供货机型

◆ESA S540特点

　　液晶彩显10.2" TFT SVGA抗辐射，交互式2D图形编辑和模具输入
3D显示工件、模具和机床框架；手动2D图形用于设置最佳的折弯步序
类似WINDOWS的操作方式，以制表方编程轴的位置，操作简单，自动检查，
计算R轴和X轴以及折弯吨位,预设标准PC键盘（选配）
用户自定义报警功能

　　10.2" TFT VGA colour display with antiglare screen, ergonomic moulded plastic housing, with a panel suitable for machine operational selector-switches and push-buttons;
Following arms, thickness detector, in-process angle measurement units, robotic interfacing, controlling for tandem press-brakes
Interactive 3D graphic editor for work-pieces and tools data entry
Manual 2D graphic identification of the best bending sequence
Programming of the axes positions in tabular mode with automatic syntactical checks, automatic calculation of the R and Z positions and of the bending and crowning tonnage
Windows® like user interface and Multi-languages

63T/2500 ESA S530

◆ESA S530特点

　　单色5.7''LCD显示器（320*240像素）
实时自动检查的填表式编程模式，自动计算折弯以及补偿力
所有的程序、模具、参数可以保持在本机内存或U盘
提供控制轴及其他辅助功能的编程功能
控制三个轴

　　Graphic monochrome 5.7''LCD display(320*240 pixels resolution)
Programming of the axes positions in tabular mode with automatic syntactical checks, automatic calculation of the bending and crowning tonnage.
All programs, tools description, parameters can be stored on the internal memory or on USB memory stick. These files can be exchanged with other CNC and PC through
USB memory stick.
Selectable and programmable axes and auxiliary functions.
Control 3 axes.

125T3200 DNC880S 出口供货

◆DNC880S特点

　　高品质大键盘操作面板，可以戴手套操作，高亮度、分辨率10.4” TFT 真彩液晶显示
中文操作界面，标准4轴或7轴控制，800MHZ中央处理器
1GB工业级闪存主存储器、内存容量256MB，产品模具信息存储容量300MB
以太网RJ45网络接口， USB接口4个（３个外置，１个内置）
标准VGA视频输出/键盘/鼠标/打印机/RS232接口
快捷主题键，弹出式菜单，下拉式产品图形库、模具库，集成式机床操作面板，不锈钢手柄

　　Keyboard: Large keys easy to use with working gloves10.4” TFT colour LCD screen
Language: 17 dialogue languages
Axes: 4 axes standard configuration, or up to 7 axes
CPU: Via Eden 400MHz, RAM: 256MB (standard version)
Mass memory: Compact Flash (1 GB), Port: USB, RS232, RJ45 Ethernet, VGA
Product and Tool memory 300MB, Integrated OEM Panel

◆数控系统品牌说明 CNC Controller

　　荷兰DELEM品牌系列：DA52S、DA56S、DA66T、DA69T
意大利ESA品牌系列：ESA S530、ESA S540、S550
瑞士CYBELEC品牌系列：DNC60S、DNC600S、DNC880S、MODEVA10S、MODEVA12S
