产品简介：

古野FURUNO NX-300双频NAVTEX接收机

FURUNO NX-300 接收航海电传（NAVTEX）报文并核实接收到报文的ID码。具有两个窄带接收器，一个调谐到518 kHz 国际Navtex 频率，另一个调谐到 490 kHz 国内或当地国家的频率，可通过前面板的频率选择开关进行选择。

NAVTEX 是一种世界范围的海岸英语电传广播系统。广播站可发射航海警告、气象警报、寻找和救援 (SAR) 信息，以及广播服务范围内船舶航行所需的其它数据。服务范围是200～400海里，取决于地域和广播站发射功率，报文每四个小时广播。在英法等国，Navtex 服务在490 kHz ，使用本国语言。NX-300具有多种语言处理。

每个输入的报文可以被识别，而且新的报文可显示在高对比度的4.5" LCD上，不需要纸张。报文内容可以通过PC接口打印出来。当NX-300连接GPS/DGPS导航仪（以NMEA 0183格式输出位置），可根据各自的船舶位置，自动选择广播站。

NX-300包括一个紧凑的、防水的显示单元和一个天线单元。防水的显示单元可安装在驾驶舱或任何方便的位置。

NX-300 特点如下：

稳定连续地接收Navtex报文；

设计用于小船和渔船；

不需要耗材和纸张；

超清晰4.5"背光式银亮LCD显示；

紧凑的，时尚的显示单元和天线单元；

报文存储：28000个字符存储能力；

后备存储具有长效锂电池；

低功耗；

NAV数据显示模式（需NAV传感器）；

多种语言菜单。

NX-300 技术参数：

接收频率：518KHz和490KHz可选（通过前面板的开关）；

接收方式：F1B ；

灵敏度：2 μV e.m.f.(50Ω)，误码率4% ；

报文种类：

A.航海警告 B.气象警报 C.冰雪报告 D.寻找和救援信息/海盗和武装抢劫信息

E.气象预报 F.驾驶信息 G.导航信息 H. Loran-C信息 I. Omega 信息

J. 微分Omega信息 K.其它电子导航辅助设备和系统信息 L.航海警告(附加的)

M～Y. 预备--目前不用 Z. QRU (没有报文待处理) ；

显示：4.5" (95 x 60mm)银亮LCD ，像素120 x 64 ；

显示方式：报文选择模式，NAV数据模式，报文显示模式；

报文存储：28000个字符；

菜单语言：英语、西班牙语、德语、法语、意大利语、丹麦语、荷兰语、葡萄牙语；

环境(IEC 60945 测试方式)：

温度：显示单元 -15℃～55℃ ，天线单元 -25℃～70℃ ；

防水：显示单元 IPX5 (IEC 60529), CFR-46 (USCG) ，天线单元 IPX6 (IEC 60529) ；

电源：12～24V DC , 至大1.7W ；

尺寸/重量：

显示单元：209×125×85 mm ，0.68 kg ；

仪表盘安装附件： 205×130×85 mm（F型），215×92×85 mm（S型）；

天线单元（NX-3H-D）：直径156mm ，高116mm ，0.9kg ；

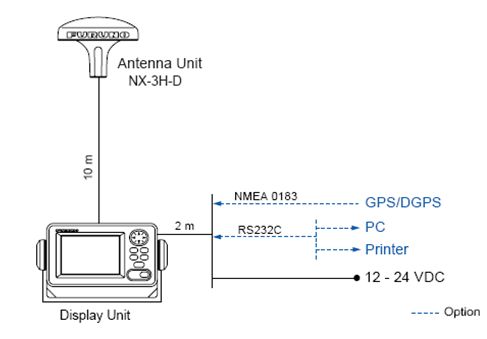

说明示意图：


标准配置包括：显示单元（NX-300-D）、天线单元（NX-3H-D）及10米电缆、安装材料和配件。

选购件包括：仪表盘安装附件（F型，OP20-29）、仪表盘安装附件(S型，OP20-17) 、天线底座（NO.13-QA330 , NO.13QA310，NO.13-RC5160 或 CP-20-01111）。
