品牌
型号
产品简介：

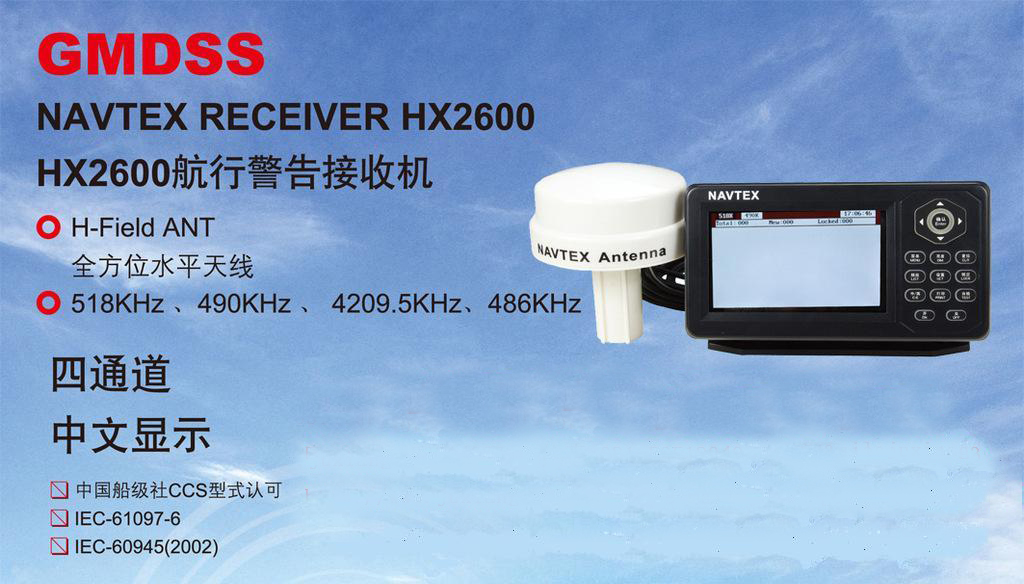

国产HX2600航行警告接收机
型号：HX2600是否标准件：标准件
品牌：EHANG样品或现货：现货
材质：PVC加工定制：否
GMDSS
NAVTEX
RECEIVER HX2600
HX2600
航行警告接收机
*H-Field ANT
全方位水平天线
*518KHz、490KHz、4209.5KHz、486KHz
四通道
中文显示
* 中国船级社CCS形式认可
*
IEC-61097-6
*
IEC-60945（2002）
General requirements
1. receiving frequency
518KHz, 490KHz,
4209.50KHz, 486KHz
2.Receive channels simultaneously
Dual-channel (ie,
a receiver operating in 518KHz channel, the other receiver can switch between
the
490KHz/4209.50KHz/486KHz).
3.Sensitivity
Useful in -
107dBm signal level, the bit error rate less than or equal to
4﹪
4.Selective anti-jamming performance
Blocking
rejection ratio: In accordance with IEC61097-6 standards for frequency of strong
signal interference, the received
useful signal bit error rate less than or equal to 4﹪.
Co-channel interference rejection ratio: interfering sources in the same
frequency interference (in accordance with IE61097-6
STANDARD) received useful information such as number of bit error rate of less
than at 4﹪.
Intermodulation: At the same time two different sources of interference
interference (in accordance with IEC61097-6
standards for
frequency and level) received useful signal error rate is less than or equal to
4﹪
5. Antenna
protection
In the antenna
signal with no modulation amplitude emf30V.
Frequency range of 100KHz-28KHz, 15 minutes after the device can still
work.
6. Display
Specifications
240×120 dot
matrix 144mm×104mm.
7. Information
Storage
Can store 200
messages, with an average of 500 characters each message, the storage time is
60-72 hours.
Information can
be stored permanently merked with Users can not manually delete
them.
8. External
Interface
A print
output.
9. Audible alarm
Volume of not less than 75dBA-85dBA.
10.
Power
12V-24VDC
11. The method
according to technical requirements of the regulations
IMO
Resolution MSC 148 (77), IEC 61097-6
IEC60945 (2002)
