品牌型号

CWZ系列舰船用小型轴流通风机

一、概述

CWZ系列舰船用小型轴流通风机(以下简称“通风机”)可适用于各种军船与民船上的厨房、厕所、舱壁、公共场所、会议室等通风换气，也可适用于其他适当的场合。

二、特点

通风机采用变环量法设计。根据通风机的参数选取合理的变环量系数，合理分配叶片各个截面上的特性速度和长度等，通风机具有噪声低、尺寸小、重量轻、性能稳定等特点。

通风机在设计和制造过程中充分考虑到舰船用的特殊条件要求：叶轮经过严格的动平衡校正、超速试验、故通风机具有耐蚀性好、抗摇摆、抗冲击、振动、运转平稳和安全可靠等特点。

通风机适须用于380V/220V,50Hz或440V60Hz的场所。

三、结构型式

通风机可分为Ⅰ型管道式、Ⅱ型舷窗式两种结构：

Ⅰ型管道式可直接用于短管道或安装在舱壁上通风。

Ⅱ型舷窗式可固定装于舷窗和舱壁上，由于有水密封装置，可方便地开启、关闭以防海水、雨水进入。

通风机叶轮为铝合金铸造成型，机壳为钢板焊接成型。

四、型号说明

C：舰船用marineornavy

W：小型small-sized

Z：轴流风机axialfan

200：叶轮直径200mm数（圆整）impellerdiameteris200mm(rounded)

D：低速（G为高速）lowspeed(Gishightspeed)

II：舷窗式prtholetype

注意事项

1输送易燃、易爆混合性气体中的硬质颗粒物，不允许多于150mg/m3，直径不宜大于2mm。

2在吸入管上要装设保护用黄铜网，以防止静电火花和其它物件的吸入，保证防爆通风机的安全。

3外接电缆进入接线盒固定时，接线盒本身及其引入装置和电缆间必须严格密封，不允许有雨水进入接线盒内。

4电缆必须接地，特别是防爆电动机必须接地。

5防爆通风机与风管连接时，不应存在由于硬性连接而产生机壳歪斜。更不得强行联接，将管道重量加在风机上，以免机壳变形。

6通风机所采用电动机的功率，系指在特定工况下加上机械损失与应有的安全系数而言，在运转过程中应调节进气量严格控制电动机电流。不得超过电动机额定电流。

7防爆电动机进线口螺纹及见表(13)。

8产品自出厂18个月内，凡因质量原因不能使用的。我厂实行包修、包换、包退。

成交0笔

产品与描述相符5分共0次评分{$review_pages}

产品列表

CWZ-224G系列船用小型轴流风机排风机 ￥1100
CBZ系列船用防爆轴流通风机 ￥10000

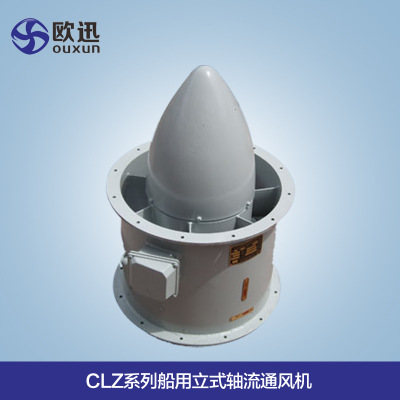

CLZ系列船用立式轴流通风机 ￥10000

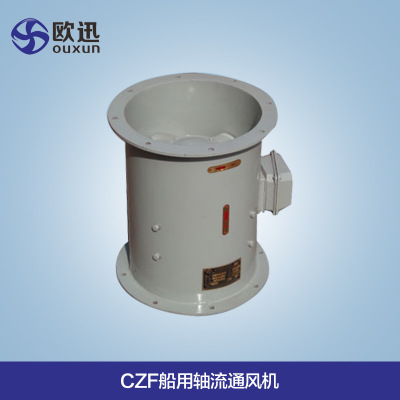

CZF船用轴流通风机排风机 ￥1000
