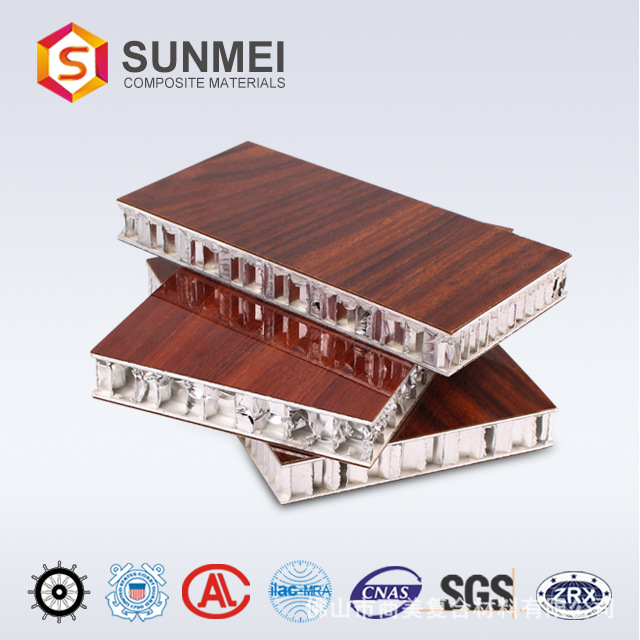

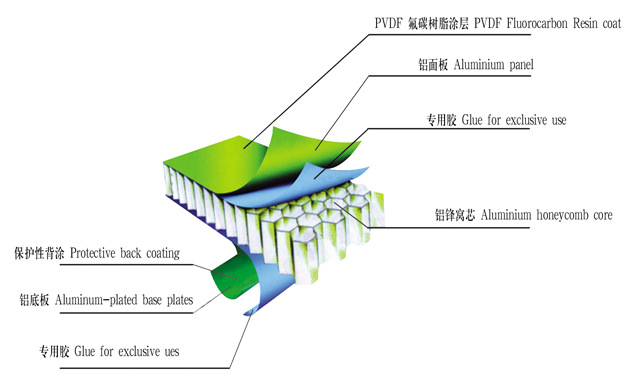

铝蜂窝板是结合航空工业复合蜂窝板技术而开发的金属复合板产品系列。该产品采用“蜂窝式夹层”结构,即以表面涂覆耐候性极佳的装饰涂层之高强度合金铝板作为面、底板与铝蜂窝芯经高温高压复合制造而成的复合板材。该产品系列具有选材精良、工艺先进和构造合理的优势,不仅在大尺度、平整度有出色的表现,而且在形状、表面处理、色彩、安装系统等方面有众多的选择。此外,面板除采用铝合金外,还可根据客户需求选择其它材质,例如:哑白钢板、搪瓷板等。
铝蜂窝板介绍
铝蜂窝板是一种仿生结构产品,是根据蜜蜂巢穴的结构特点而制造出来的具有仿生学物理结构的轻型实用环保建材。铝蜂窝芯具有正六面体结构,此种结构不仅美观漂亮,经试验证明,正六面体稳定的结构更耐压、耐拉、抗弯曲。由于铝蜂窝材料具有抗高风压、减震、隔音、保温、阻燃和强度高等优良性能,使其具有大尺寸、高平整度、重量小、强度高、符合节能、环保、绿色的产品特点,是其他材料所无法比拟的新型建材,因此铝蜂窝板被广泛地应用于航空、航天、飞机等高科技领域。
铝蜂窝板特点
1、密度小由于铝蜂窝芯结构是一种多空的不连续材料,而且实体部分的截面面积又很小,因此蜂窝芯的密度就很小。隔音、隔热性能好:蜂窝本身并不是具有隔音、隔热性能,但是铝蜂窝板却具有良好的隔音、隔热性能。常用铝蜂窝板的蜂窝芯实体材料的体积仅1%~3%,其余空间内部是处于铝板与蜂窝结构密封状态的空气,由于空气的隔音、隔热性能优于任何固体材料,热量和声波的传播受到极大的限制,所以铝蜂窝板具有良好的隔音、隔热性能。如遇下大雨时,雨点打在铝单板或铝塑板面上时噪音特别大,而蜂窝板的噪声明显减小。
2、较强的减震性能由于有许多相互牵制的密集的蜂窝犹如许多小工字梁,可分散承担来自各方面的压力。
3、质轻、节能具有相同刚度的铝蜂窝板重量仅为铝板的1;5、钢板的1:10。总厚度为15mm、面铝板为1.0mm、底铝板为0.8mm的铝蜂窝板每平方米的重量只有6公斤,总厚度为10mm、面铝板为0.5mm、底铝为0.5mm的铝蜂窝板每平方米的重量只有4公斤,比传统使用铝塑板的重量每平方米约少2公斤,但其刚性比铝塑板超出2倍多,能与4mm的铝单板相媲美,其性价比明显高于铝塑板,有效的节省材料。
铝蜂窝板主要用途
(1)建筑幕墙外墙挂板(2)室内装饰工程(3)广告牌(4)船上建筑(5)航空制造业(6)室内隔断及商品展示台(7)商用运输车和货柜车车体(8)公共汽车、火车、地铁及轨道交通车辆
产品信息
纯色,木纹,石头纹铝蜂窝板
