产品简介：

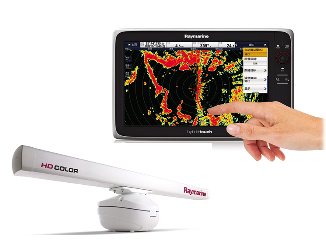

e系列多功能导航雷达
性能特点：
显示单元LIGHTHOUSE风格设计，界面简洁、中文菜单、操作简便
内置蓝牙，支持WiFi网络，可无线连接苹果手机iPhone/iPad/安卓Android系统
电容式触摸，三核处理器（双核CPU+独立GPU），反应灵敏快速
超强网络传输，同一系统可支持6台显示器
亮丽真彩的宽屏LCD显示、连续可调背光亮度，支持全视角观察
NAVIONICS Gold向量中文电子海图，雷达图像和海图叠加,AIS信息显示功能
HD COLOR彩色高清数字技术，在原有Digital的基础上进一步改良信息获取及目标探测的功能，使距离和方位分辨率得到明显提高；一流的目标分辨力，能更有效的抑制杂波，多层次256色回波显示，充分显示更多目标细节、大大提升了目标探测能力
支持雷达双量程同时工作，在观察近量程小目标的同时兼顾更大量程范围的预警
先进的全自动工作模式，雷达的增益，海浪抑制和调谐等各项参数可以由数字电路自动调节；
标配自动避碰小ARPA功能，可以同时跟踪多达25个目标，不需要另外选购ARPA板
技术参数
配套型号 | e95-RD418D/ e95-RD424D | e125-5S-HD | |||
综合指标 | 工作湿度 | ≤95%，在35℃不结露 | ≤95%，在35℃不结露 | ||
防水等级 | CFR46/IPX6，可以安装在室外. | CFR46/IPX6，可以安装在室外. | |||
显 示 单 元
| 显示器型号 | e95 | e125 | ||
分辨率 | 800x480像素(WVGA) | 1280 x800像素(WXGA) | |||
显示器尺寸 | 9.0” | 12.1” | |||
背光亮度 | 白天/夜间；可调节背光64级 | ||||
显示方式 | 全屏\多屏（至多可分为4个画面，且可独立操作） | ||||
显示内容 | 海图、雷达（可叠加海图）、测深、视频接入、发动机监控、AIS信息叠加显示等航行信息 | ||||
调谐/增益 海浪抑制 | 数控100级，自动或手动 | ||||
雨雪抑制 | 数控100级，同时具有RAIN和FTC调节 | ||||
接口 | 3x NMEA 0183端口（I/O 4800/9600/38400 baud） | ||||
1 x SeaTalk | |||||
2x SeaTalk hs（RJ45接口，100 Mbits/S） | |||||
1x SeaTalk ng | |||||
1x Video输入 | |||||
显示模式 | 船首向上、北向上、航向向上（真运动/相对运动） | ||||
EBL/VRM | 2×EBL/VRM中心可浮动控制,EBL和VRM可同时操作 | ||||
警戒区 | 2个，报警灵敏度可调(100级),声音报警 | ||||
偏心 | 船首向反向的1/3、2/3半径的中心偏移 | ||||
彩色尾迹显示 | 关， 10秒，30秒，1分钟，5分钟，10分钟 | ||||
彩色回波 | 单彩色显示 | 彩色回波 | |||
海图 | 支持NAVIONICS包括中文海图卡的全球详细海图卡， | ||||
安装方式 | 嵌入控制台或支架安装 | ||||
工作电压 | 12V/24V DC (安全工作电压范围：10.7V ~32 V DC) | ||||
功率 | 19 W | 22W | |||
外形尺寸 | 317 x 197 x 136 mm | 381x 245 x 136mm | |||
重量（Kg） | 3.85 | 4.76 | |||
天 线 单 元 | 天线型号 | RD418D | RD424D | 5S-HD(RA1048HD) | |
天线类型 | 圆天线 | 圆天线 | 裂缝天线 | ||
发射功率 | 4KW | 4KW | 4KW(可升级12KW) | ||
工作电压 | 10.8V~33V | 10.8V~33V | 10.8V~32V | ||
天线长度（cm） | 53 | 66 | 133（可升级4875px） | ||
超大量程（nm） | 48 | 48 | 72 | ||
天线转速 | 24 | 24 | 24 | ||
信号处理方式 | Color | Color | HD Color | ||
水平波速宽度 | 4.9º | 3.9º | 1.85º(4875px天线为1.15º) | ||
垂直波速宽度 | 25º | 25º | 25º | ||
支持双量程 | √ | ||||
重量（Kg） | 9.5 | 10.0 | 25.6 | ||
小MARPA功能 | 至多可同时捕获25个目标 | ||||
发射频率 | 9405MHz±25 MHz | 9405MHz±20 MHz | |||
脉冲宽度（8个） | 0.075/0.1/0.15/0.25/0.35/0.45/0.6/1.0us（间距大点） | ||||
重复频率 | 820/1300/1500/2000/3000MHz（间距大点） | ||||
中频宽度 | 70 MHz | ||||
极化方式 | 水平极化 | ||||
抗风等级 | 100kts | 85kts | |||
e系列多功能导航系统，系Raymarine（英国雷松）融合较新的先进技术及高度人性化两大特点研发的—款新型彩色高清数字雷达，带有触摸操作和传统按键操作的独立两套系统，采用LIFEHOUSE风格设计，操作界面更加智能化，人性化，更富有高科技感。是一款高新技术与人性化充分融合的高端数字雷达。
使用专业光学级高分辨率的LCD背光显示屏，支持全视角观察。搭配集合业界较先进的技术为一身的HD Color彩色高清数字雷达，提供较为稳定的超强性能与精妙绝伦的彩色高清数字雷达回波图像。完好呈现清晰、明亮、真实的雷达图像，即使小小的物标也清晰易辩。
操作界面非常简洁，菜单及按键设置较具有人性化，具有操作简单，易上手，性能稳定可靠等优点，且所有的系列产品的操作系统都具有延续性，从而保证了产品更新换代在操作系统上的一致和兼容，各个系列产品的操作界面及菜单亦均具有统一性，有效避免了因执法船艇的人员调动而导致了操作不熟悉产生的问题。
目前e系列多功能导航雷达受到了广大客户的欢迎与认可，包括海事、水上公安、海关等公务部门都指定其配套。
