品牌 型号
系船柱预埋件用途
系船柱预埋件船舶港口系船柱预埋件,适用于设备固定、钢结构基础预埋件、路灯、交通指示牌、泵、锅炉安装、重型设备预埋固定等。
系船柱预埋件安装方法
一次埋入法:浇灌混凝土时,将地脚螺栓埋入。当高塔等以倾覆控制时,地脚螺栓宜采用一次埋入法。
预留孔法:设备就位,将孔洞打扫干净,将地脚螺栓放入孔中,设备定位找正后再用比原基础高一级的无收缩细石混凝土进行浇灌,捣固密实。
系船柱预埋件使用注意事项
一次埋入之地脚螺栓中心至基础边缘的距离不应小于4d(d为地脚螺栓直径),且不应小于150mm(d≤20时不应小于100mm),并不小于锚板宽度的一半加50mm,当不能满足上述要求时,应采取适当措施,予以加强。结构用的地脚螺栓直径不宜小于20mm。当承受地震作用时,应采用双螺母固定,或采用其它有效防止松动的措施,但地脚螺栓的锚固长度应比非地震作用的锚固长度增加5d。地脚螺栓的安装规划地脚螺栓在基础内松动的处理在近拧紧地脚螺栓时,可能将螺栓拔活,此时应先螺栓调整至原位置,并将螺栓周围的基础铲出足够的位置,然后在螺栓上焊纵横两个U形钢筋,最后用水将坑内清洗干净并灌浆,待混凝土凝固到设计强度后再拧紧活地脚螺栓偏差的处理活地脚螺栓偏差的处理方法,大致与死地脚螺栓的方法相同,只是可以将地脚螺栓拔出来处理。如螺栓过长,可在机床上切去一段再套螺纹;如螺栓过短,可用热锻法伸长;如位置不符,用弯曲法矫正。
1

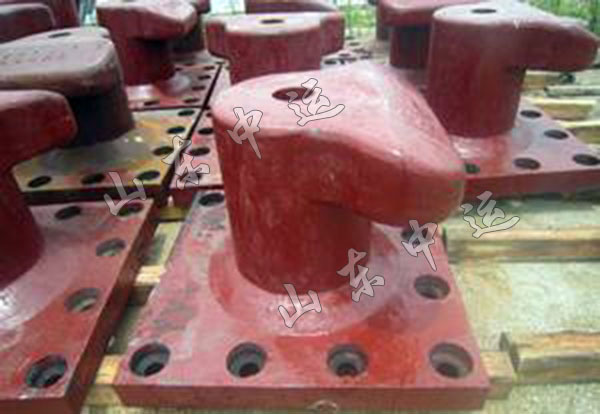

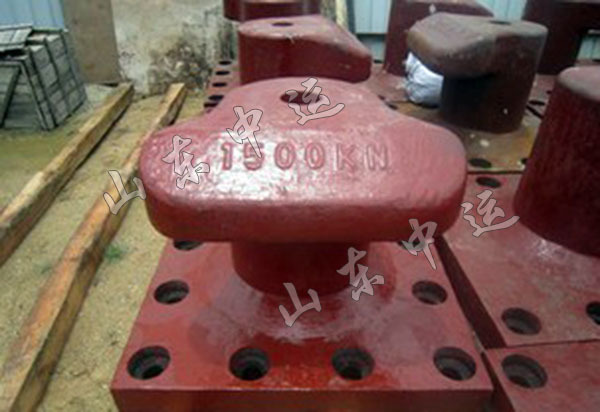

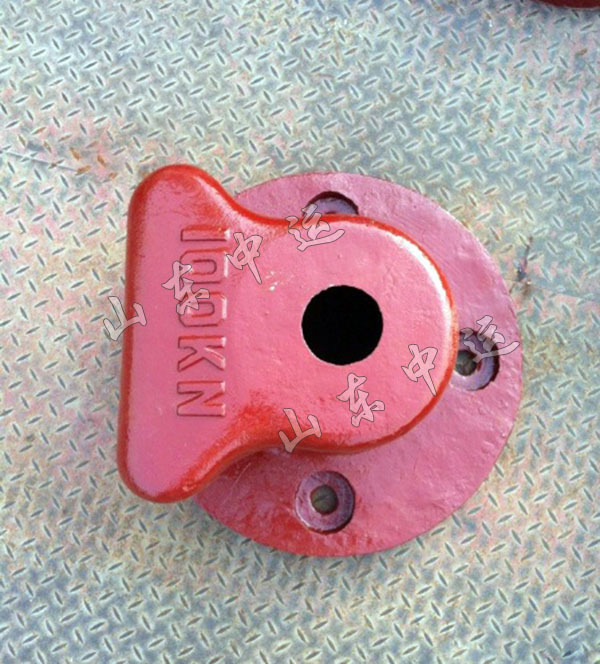

系船柱预埋件实物图
