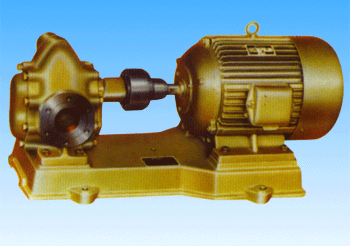

GCJ船用锅炉给水泵 面议
- 产品详情
- 成交0
- 评价0
品牌
型号
一、概述 ：
1、本泵适用于输送各种有润滑性的液体，温度不高于70℃，如需高温200℃，同本单位联系可配用耐高温材料即可，粘度为5×10 -5 ~ 1.5×10 -3 ㎡/S.
2、本泵不适用于输送腐蚀性的，含硬质颗粒或纤维的、高度挥发或闪点低的液体，如汽油、苯等。
二、主要技术参数：
型号 Model | 流量 Flow Capacity Q | 转速 Speed | 规定压力 Pressure P | 必需汽蚀余量 （NPSH）r | 效率 Efficiency | 电动机 Electrical Motor | ||
m 3 /n | 1/min | r/min | Mpa | m | % | 功率 Power kw | 功率 Model | |
KCB-18.3 | 1.1 | 18.3 | 1400 | 1.45 | 5 | 44 | 1.5 | YH90-4 |
2CY-1.1/1.45 | ||||||||
KCB-33.3 | 2 | 33.3 | 1420 | 1.45 | 5 | 44 | 2.2 | YH100L1-4 |
2CY-2/1.45 | ||||||||
KCB-55 | 3.3 | 55 | 1400 | 0.33 | 7 | 41 | 1.5 | YH90-4 |
2CY-3.3/0.33 | ||||||||
KCB-83.3 | 5 | 83.3 | 1420 | 0.33 | 7 | 43 | 2.2 | YH100L1-4 |
2CY-5/0.33 | ||||||||
KCB-135 | 8 | 135 | 940 | 0.33 | 5 | 46 | 2.2 | YH112M-6 |
2CY-8/0.33 | ||||||||
KCB-200 | 12 | 200 | 1440 | 0.33 | 5 | 46 | 4 | YH112M-4 |
2CY-12/0.33 | ||||||||
KCB-300 | 18 | 300 | 960 | 0.36 | 5 | 42 | 5.5 | YH132M2-6 |
2CY-18/0.36 | ||||||||
KCB-483.3 | 29 | 483.3 | 1440 | 0.36 | 5.5 | 42 | 7.5 | YH-132M2-4 |
2CY-29/0.36 | 11 | YH160M-4 | ||||||
KCB-633 | 38 | 633 | 970 | 0.28 | 6 | 43 | 11 | YH160L-6 |
2CY-38/0.28 | ||||||||
KCB-960 | 58 | 960 | 1470 | 0.28 | 6.5 | 43 | 18.5 | YH180M-4 |
2CY-58/0.28 | 22 | YH180L-4 | ||||||
KCB-1200 | 72 | 1200 | 740 | 0.6 | 7 | 42 | 37 | YH280S-8 |
KCB-1600 | 95 | 1600 | 980 | 45 | YH280S-8 | |||
KCB-1800 | 110 | 1800 | 740 | 0.6 | 7.5 | 43 | 55 | YH315S-8 |
KCB-2500 | 150 | 2500 | 980 | 75 | YH315S-6 | |||
KCB-2850 | 170 | 2850 | 740 | 0.6 | 8 | 44 | 90 | YH315M2-8 |
KCB-3800 | 230 | 3800 | 985 | 110 | YH315M2-8 | |||
KCB-4100 | 245 | 4100 | 740 | 0.6 | 8 | 44 | 90 | YH315M2-8 |
KCB-5400 | 325 | 5400 | 985 | 110 | YH315M2-6 | |||
